Products

Bevel Gear Boxes

Straight bevel gears are the result of innovative technology and advanced mechanical design and offers a range of sizes and models to provide solutions which will satisfy nearly any requirement.

The conical straight bevel gleason gears are casehardened,tempered and then lapped using specialised workmanship to provide smooth and silent rotation even at high speeds, also can produce custom built bevel gear boxes which have been especially designed to meet the requirements of any particular machine. • cubic form(high grade cartiron)- low backlash(15' to 20') • universal assembling • low noise • high efficiency (94 to 97%) • ratios form (1/ 1 to1/ 12) • with saft(hollow, solid, splined with clamps) • reversing gears • shaft(hollow, sokid, splined)

Bevel Gear Box Types

These bevel gear units are designed and built with innovative technology.

The avant- grade mechanical solutions and the wide range of sizes and models are capable of satisfying the most demanding and sophisticated applications. The cubic shape is completely machined on all sides with each face drilled for mounting. The hubs and flanges are made with spigots to accommodate mounting. The gear are made of nickel-crome-molybdenum steel alloy with gleason bevel gears machine. • Solid Shaft bevel gear box with splined • High reduction bevel gear box • Hollow shaft on bevel gear box with reinforced input • Solid Shaft bevel gear box

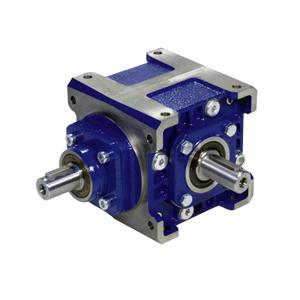

Bevel Gear Box

• Motor Bevel gear box with hub • Hollow shaft bevel gear box with clamps • High reduction motor bevel gear box • Solid input shaft reversing bevel gear box

Helical Gears

These gears have got a sophisticated functioning and a great use in automobile industry.

The Helical Gears manufactured by the company offers a smooth functioning and are recommended when the process involves high speed, large power transmission or where noise abatement is important. The leading edges of the teeth of these gears are not parallel to the axis of rotation but they are set at an angle.

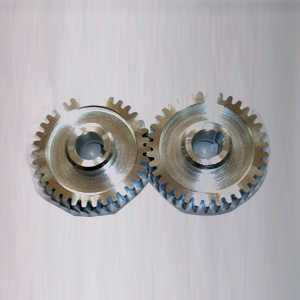

Spur Gears

These gears are made by using fine raw material and are available in various customized sizes as per clients requirement.

Spur gears manufactured by the company are the most simplest and most common type of gears which are generally used for transmission of rotary motion between parallel shafts. These have got an operating efficiency of 98-99%. The teeth in these gears project radically and are aligned parallel to the axis rotation giving an efficient end result.
